The role of high-voltage power supply in electrostatic precipitators

Electrostatic precipitator, also known as "high-voltage electrostatic precipitator equipment", is a device used to remove particulate matter (such as dust, smoke, etc.) from air or gas. It is one of the commonly used environmental protection equipment for purifying dusty gases, widely used in industries such as power, metallurgy, building materials, and chemical engineering.

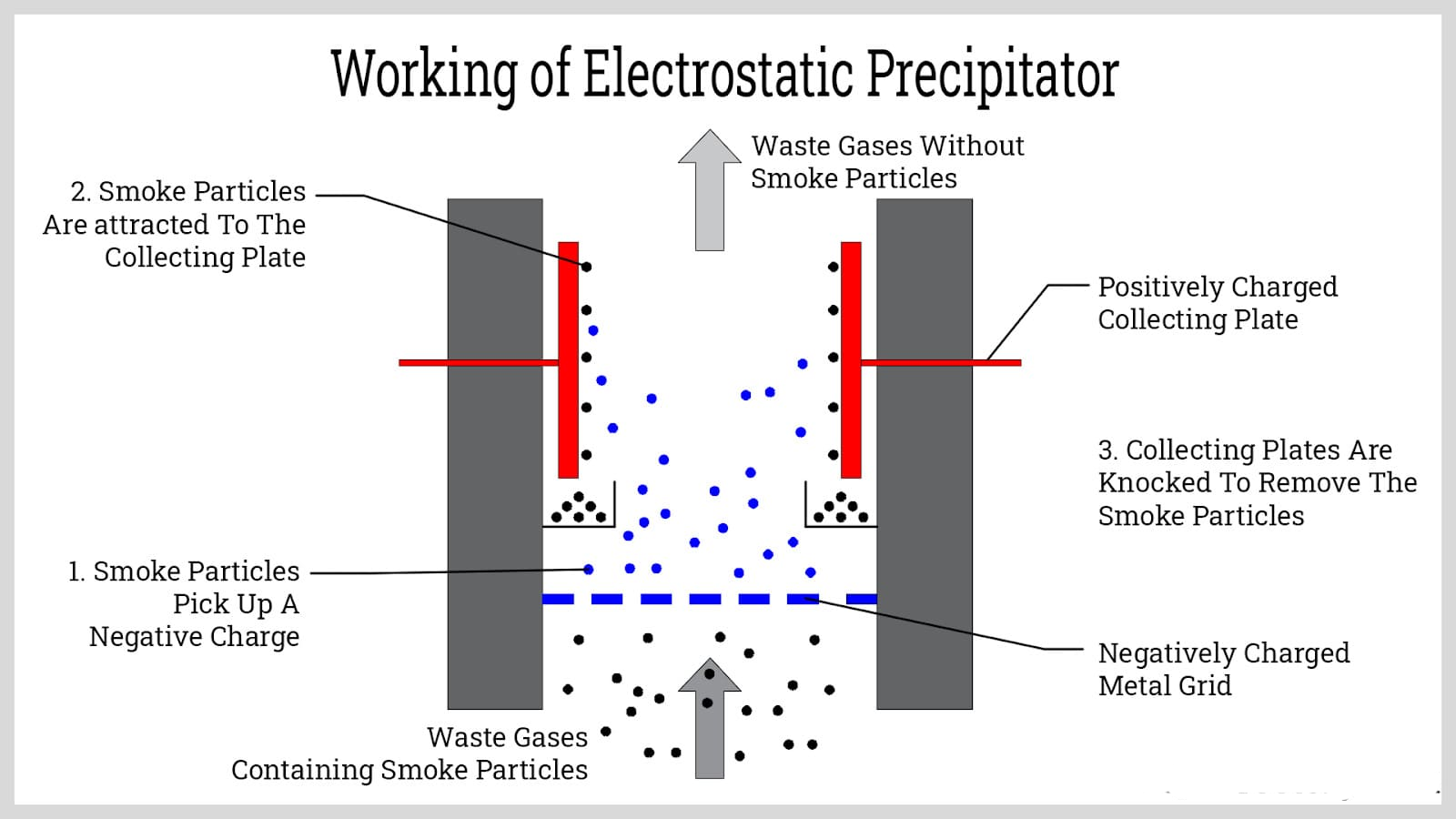

Working principle of electrostatic precipitator

High voltage electrostatic precipitator is a dust collector used to collect fine dust. It is a dust removal device that uses electrostatic force to separate solid or liquid particles from gas flow. It connects the discharge electrode and dust collection electrode of the electrostatic precipitator to high-voltage direct current to maintain an electrostatic field sufficient to ionize the gas. When the dusty gas passes through an uneven electric field between two electrodes, it will ionize under the strong action of the strong electric field around the discharge electrode, forming gas ions and electrons, and charging the dust particles. The charged particles move towards the dust collector under the action of the electric field and deposit on the dust collector, thus achieving the purpose of dust gas separation. When the dust on the dust collector reaches its thickness, use a vibration mechanism to make the dust fall into the lower ash hopper.

The function of high-voltage power supply

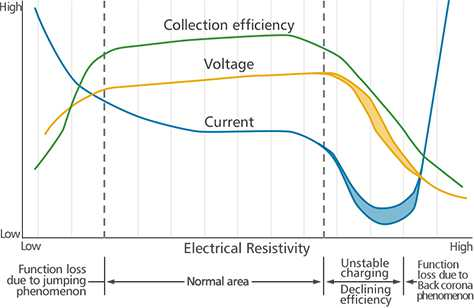

Generating electric field, efficient ionization and adsorption effect: High voltage power supply can provide sufficient electric field strength to ionize gas molecules in the air, producing a large number of positive and negative ions. These ions are quickly adsorbed onto the charged dust removal device through the action of electric field force, forming a dense dust layer and improving the dust removal effect. The voltage of the high-voltage power supply directly affects the settling efficiency of the electrostatic precipitator. Low voltage may not effectively ionize gases and particles, thereby reducing dust removal efficiency; If the voltage is too high, it may lead to excessive corona discharge, and even cause electric shock or equipment damage. So it is necessary to accurately adjust the output voltage of the high-voltage power supply to achieve the best efficiency of the dust removal equipment.

Stable and reliable power output: The electrostatic precipitator system requires high stability of the power supply, and the high-voltage power supply needs to be able to provide stable and reliable voltage output to ensure the continuous and efficient operation of the electrostatic precipitator. Any voltage instability can lead to a decrease in efficiency or malfunction of the electrostatic precipitator. Our high-voltage power supply has stable and reliable power output characteristics, which can maintain a relatively constant output voltage during long-term operation, ensuring the stable operation of the electrostatic precipitator system.

Energy saving, environmental protection and low maintenance costs: Compared with traditional dust removal methods, the use of high-voltage power supply in dust removal systems can better and efficiently complete dust removal, reduce energy loss, lower energy costs and exhaust emissions, and be more environmentally friendly. And our high-voltage power supply has a long service life and stable performance, which also reduces maintenance costs.

As the core component of electrostatic precipitator system, high-voltage power supply provides reliable technical support for solving the problem of electrostatic precipitator with its advantages of high efficiency, stability, flexibility, energy saving and low maintenance cost. In industrial production, the use of high-voltage power driven electrostatic precipitator systems can not only effectively control dust and improve the cleanliness of the production environment, but also reduce energy consumption, achieving dual benefits of economy and environmental protection.
