Working principle of high-voltage DC power supply

Ⅰ. Working principle of high-voltage DC power supply

        High-voltage DC power supply inputs AC mains or three-phase power, and after a series of transformation and rectification processes, it finally outputs a DC voltage of more than thousands of volts or tens of thousands of volts. Its core working principle mainly involves rectification, inversion and filtering processes.

        First, the AC mains or three-phase power is rectified by a rectifier to convert the AC into pulsating DC. The function of the rectifier is to adjust the direction of the current so that the output current presents a unidirectional flow characteristic.

        Next, the pulsating DC is inverted by the inverter to convert it into AC in the form of square wave or sine wave. The inverter realizes the conversion and regulation of electric energy by controlling the on and off of the switching elements. During the inversion process, the trigger pulse parameters of the switching elements, such as frequency, duty cycle, etc., play a key role in the inversion effect.

        Finally, the inverted AC power is filtered again through the rectifier to eliminate the high-frequency components and noise in it and obtain a smooth DC output. The design and selection of the filter are crucial to ensure the stability and accuracy of the output DC voltage.

        Through the combination of rectification, inversion and filtering, the high-voltage DC power supply realizes the conversion from AC to DC and outputs a stable DC voltage. At the same time, by controlling parameters such as the phase shift angle of the rectifier bridge, the output power of the power supply can be adjusted to meet the needs of different application scenarios.

Ⅱ. Scientific and technological applications of high-voltage DC power supplies

        High-voltage DC power supplies are widely used in the field of science and technology, involving power, communications, industrial control and other aspects. Below we will select several typical applications for introduction.

●Power transmission and distribution

        In the power system, high-voltage DC power supplies have significant advantages in long-distance power transmission and large-capacity power transmission. By adopting high-voltage DC transmission technology, line losses can be effectively reduced, transmission efficiency can be improved, and interconnection between power grids of different voltage levels can be achieved. In addition, high-voltage DC power supplies can also be used to build DC microgrids to achieve access and optimal utilization of distributed energy.

●Power supply for communication equipment

        In the field of communications, high-voltage DC power supplies provide stable and reliable power guarantee for communication equipment. Since communication equipment has high requirements for the stability and reliability of power supply, high-voltage DC power supply has become the preferred power supply solution with its high efficiency and stable performance. By adopting high-efficiency rectifiers and filters, high-voltage DC power supply can ensure the normal operation of communication equipment in harsh environments and improve the reliability of communication systems.

●Industrial Automation and Control

        In the industrial field, high-voltage DC power supply is widely used in automated production lines, robot control, motor drive and other aspects. By providing stable and high-quality DC power supply for industrial equipment, high-voltage DC power supply helps to improve the operating efficiency of equipment, reduce the failure rate, and extend the service life of equipment. In addition, high-voltage DC power supply can also be combined with intelligent control systems to realize the intelligence and automation of industrial production.

●New Energy Field

        With the rapid development of new energy technology, the application of high-voltage DC power supply in the new energy field is also becoming more and more extensive. For example, in solar photovoltaic power generation systems, high-voltage DC power supply is responsible for boosting and filtering the DC power generated by photovoltaic panels to meet the needs of grid-connected power generation or off-grid energy storage. In addition, high-voltage DC power supply also plays an important role in wind power generation, energy storage systems and other fields.

Ⅲ. Future development trend of high-voltage DC power supply

        With the advancement of science and technology and changes in market demand, high-voltage DC power supply will show the following development trends in the future:

●High efficiency: By optimizing the design of key components such as rectifiers and inverters, the energy conversion efficiency of the power supply can be improved and the loss can be reduced.

●Intelligent: Introduce intelligent control technology and communication technology to realize functions such as remote monitoring, fault diagnosis and automatic adjustment of high-voltage DC power supply.

●Modularization: Adopt modular design to facilitate the assembly and maintenance of power supply and improve the flexibility and scalability of the system.

●Greening: Focus on environmental protection and energy saving, adopt environmentally friendly materials and energy-saving technology, and reduce the manufacturing cost and operating cost of power supply.

        In short, as an important part of the power field, the working principle and application range of high-voltage DC power supply are becoming more and more extensive. With the continuous advancement of science and technology and the continuous changes in market demand, high-voltage DC power supply will play a more important role in the future and inject new vitality into the development of the power industry.

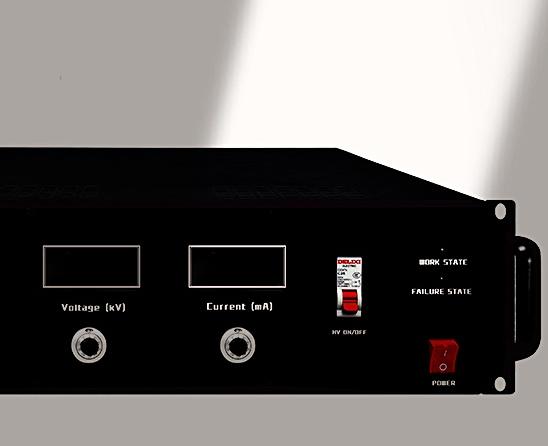

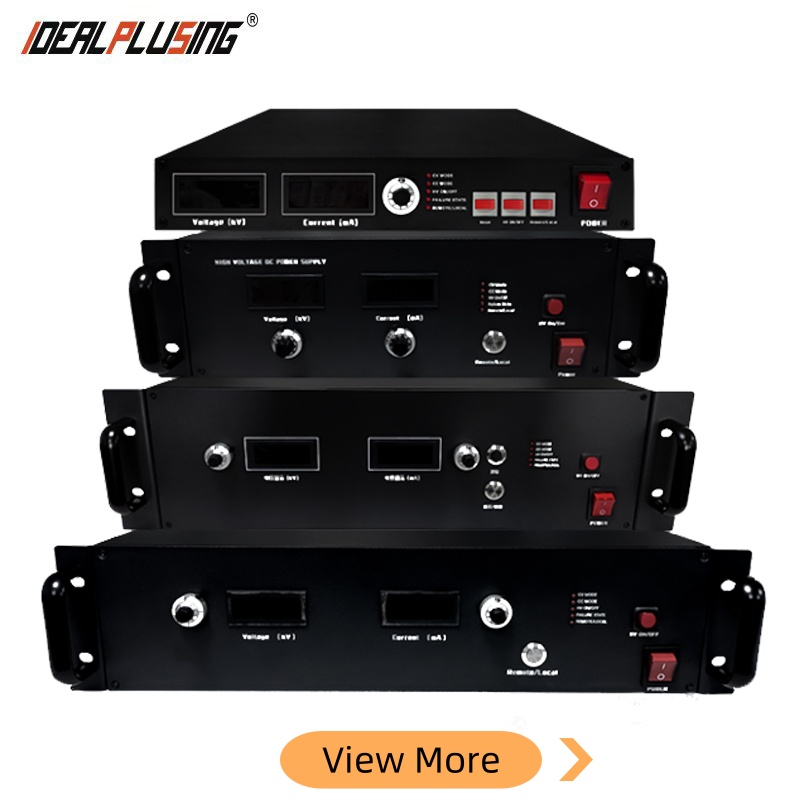

Hot selling models: Model Information :IPS-ATDJ150KV-10mA ①　AC Input : Single phase 220VAC±10% 50/60HZ ②　DC Output voltage: 0~+150KV or 0~-150KV ③　DC Output current: 0~10mA ④　Max power: 1500W ⑤　Cooling method: Cooling fan ⑥　Input plug: Customized base on clients ⑦　Output wire: 1.5 meters (Customized) ⑧　External control: 0-10VDC signal ⑨　RS485/232 communication port: (Optional) Notes: Positive or negative high voltage optional
