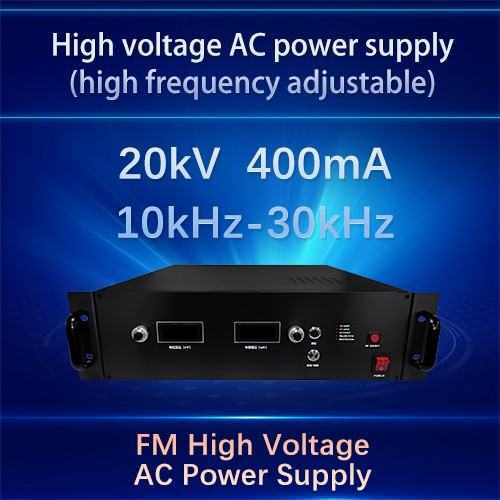

IPS-ATDJ20KV-10kHz~30kHz

Model

IPS-ATDJ20KV-15kHz~30kHz

Input

AC220V±10%, 50Hz/60Hz

Output voltage

peak voltage 20kV

Output current

peak current 200mA

Output power

peak power 4kW

Adjustable frequency

15kHz~30kHz

Front panel status indication

voltage and current LED display; voltage and current fault indication

Voltage control

The power supply comes with a rotary encoder to set the output voltage between 0 and rated value, which can realize constant voltage control

Current control

the power supply comes with a rotary encoder to set the output current between 0 and rated value, which can realize constant current control

Voltage adjustment rate

Relative load: 0.3% (no load to rated load).

Relative Input: 0.3% (±10% change in input voltage).

Current adjustment rate

Relative load: 0.1% (no load to rated load).

Relative Input: 0.1% (±10% change in input voltage).　

Ambient Temperature

Operating temperature: 0°C to 50°C.

Storage temperature: -20°C to 75°C.

Temperature coefficient

 typically 100ppm per degree Celsius.

Stability

better than 0.1% every 8 hours after power on and warm up for half an hour.

Humidity: 10-70% without condensation.

Voltage and current display

Four digit tube, voltage accuracy ±(0.3%+1), current accuracy ±(4%+3)

Overall dimensions

width 482mm, height 132mm, depth 360mm

Weight

15kg

High-voltage output line (two kinds are optional)

1, Self-contained unshielded high voltage cable. The standard high voltage cable is 1.5 meters long, with a wire diameter of 2.5 sq. ft. and an outer diameter of 15mm. Other lengths are optional.

2、Self-shielded high-voltage cable. Standard high-voltage cable is 1.5 meters long, 2.5 square wires, outer diameter of 14 mm. Other lengths are optional.
